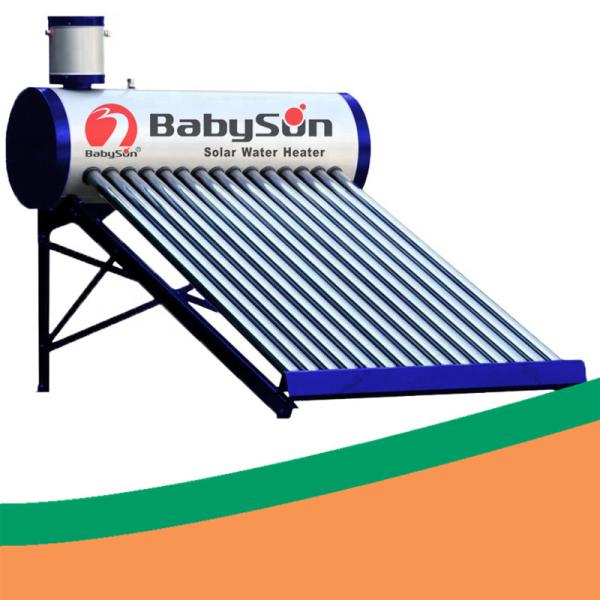

Pre Heated Vacuum Tube Solar Hot Water Heater System Non Welding

Brand Name : BABYSUN/OEM

Model Number : BS-NP

Certification : CE/ISO/INMETRO

Place of Origin : CHINA

MOQ : 1

Price : USD60.00-300.00/pcs

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability : 10000/per month

Delivery Time : 7-14 Workdays

Packaging Details : Cartons

Product Name : solar hot water system

Inner Tank Material : SUS304 stainless steel

Outer Tank Material : Galvanized steel

Capacity : 160L

Diamater : 380/480mm

Insualtion : 50mm

Vacuum Tube : 58*1800mm

Bracket Material : Galvanized steel

Bracket Angle : 19 degree

Main Market : Indonesia, Malaysia

Contact Now

New best efficiency pre-heated vacuum tube solar hot water system
(1) Product Description

BABYSUN solar hot water system is a water heater with the help of sunlight that works on the thermoship principle. Where cold water enters the heating groove (copper) and then processed with ultra violet rays of the sun. from the process it produces heat which is then stored in the tank. The circulation work system which every time in the process of heating cold water to hot water, of course it must be controlled the performance of the heating engine like a motorcycle engine that always moves with its system, just like the BABYSUN solar hot water system which circulates with water pressure.

If the motor is related to lubricants and fuel, BABYSUN is a solar hot water systemwith water and pressure, where water is identical to acid and corrosion processes, especially when the water heating material is made of iron, steel, enamel, copper, aluminum, brass and so on.

Hot showers / warm water may have become your needs, apart from being able to maintain health, hot showers have also become a lifestyle trend today. good for Home, Hotel, Villa, Hospital, Salon, and SPA. the use of water heaters is a measure of today's lifestyle. maybe your habit and family enjoy the warmth of a hot shower / warm water.

The only solar hot water system with Electric Backup that protects against the risk of electric shock.

(2) Technical Specification:
Solar Water Heater Inner Tank:
Food grade SUS 304 stainless steel/316 stainless steel, 0.4-0.6mm, diameter 360mm/380mm
Solar Water Heater Out Tank: Galvanized steel/201 stainless steel/304 stainless steel, 0.4mm, diameter 460mm/480mm
Insulation: 50mm high-density polyurethane foamed
Inlet&Outlet: 1/2” or 3/4”, stainless steel
Vacuum Tube: QB-AL-N/AL-47mm/58mm-1800mm
Water Tank Bracket: Galvanized steel sheet, 1.5mm/201 stainless steel, 1.2mm/aluminium alloy, stainless steel screws & nuts

Model Evacuated Tube

Tank & Tube Capacity

(L)

Person NO.

Diameter

(mm)

Length

(mm)

Quantity

(pcs)

BS-NP/NPS-581800-6 58 1800 6 60 1
BS-NP/NPS-581800-8 58 1800 8 80 1-2
BS-NP/NPS-581800-10 58 1800 10 100 1-2
BS-NP/NPS-581800-12 58 1800 12 120 2-3
BS-NP/NPS-581800-15 58 1800 15 150 3
BS-NP/NPS-581800-18 58 1800 18 180 3-4
BS-NP/NPS-581800-20 58 1800 20 200 4
BS-NP/NPS-581800-24 58 1800 24 240 4-5
BS-NP/NPS-581800-30 58 1800 30 300 6
BS-NP/NPS-581800-36 58 1800 36 360 7
BS-NP/NPS-581800-50 58 1800 50 500 9-10


(3) Optional Accessories and their Function:
Assistant tank: to add water automatically;
Electric heater: to heat water when rainy and cloudy days;
Magnesium anode: to soften water in hard water area;
TK-8A/TK-7/TK-5 digital controller: to read and control water temperature and water level

(4) Our Advantage:
1. Solar water heater with assistant tank modelnew design side assistant tank for hard water area;
2. Non-welding technology

(5) Application:
The main use is for family use, such as bathing, cloth washing and so on.
Solar water heater with assistant tank model is widely used in apartment, hotel and school.
Also it can be used for swimming pool, farm.

Pre Heated Vacuum Tube Solar Hot Water Heater System Non Welding

Pre Heated Vacuum Tube Solar Hot Water Heater System Non Welding


(6) FAQ
1- What is your Delivery Time?
LCL order/Sample order: within 7 days.
Full container order: 7-14days.
2- What is your Guarantee Time?
5 years.
Provide you with 1%-2% extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES.
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 set.
6- What is your Packing?
LCL order/Sample order in wood cartoon.
Full container order in high quality standard export carton.
Pre Heated Vacuum Tube Solar Hot Water Heater System Non Welding
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
10000 sets.
9- What is your Shipping Term?
By Sea/Air/Rail.

Pre Heated Vacuum Tube Solar Hot Water Heater System Non Welding
