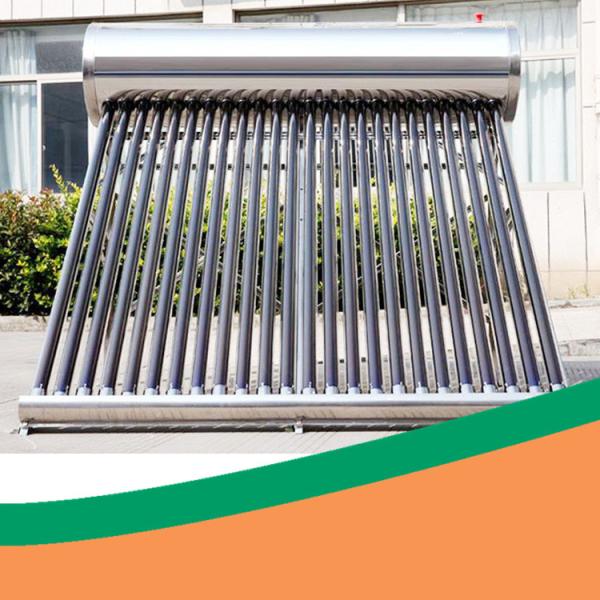

Long lifetime stainless steel open loop integrated solar water heater
(1) Product Description
The first point is that for integrated solar water heaterr, I personally recommend that you use solar water heater with electric heater function. Because the integrated solar water heater is greatly affected by weather conditions, if the sun is not good, the water temperature may not be used, so it is recommended that you install an electric heater function.
The second point is to once again recommend that everyone must do a good job of thermal insulation of integrated solar water heater. After the integrated solar water heater is well insulated, it will save a lot of energy, and the water we release does not need to release so much cold water. The most important thing is to prevent the water pipes from freezing in winter.
(2) Technical Specification:
Solar Water Heater Inner Tank:
Food grade SUS 304 stainless steel/316 stainless steel, 0.4-0.6mm, diameter 360mm/380mm
Solar Water Heater Out Tank: Galvanized steel/201 stainless steel/304 stainless steel, 0.4mm, diameter 460mm/480mm
Insulation: 50mm high-density polyurethane foamed
Inlet&Outlet: 1/2” or 3/4”, stainless steel
Vacuum Tube: QB-AL-N/AL-47mm/58mm-1800mm
Water Tank Bracket: Galvanized steel sheet, 1.5mm/201 stainless steel, 1.2mm/aluminium alloy, stainless steel screws & nuts
| Model | Evacuated Tube | Tank & Tube Capacity (L) | Person NO. |
| Diameter (mm) | Length (mm) | Quantity (pcs) |
| BS-NP/NPS-581800-6 | 58 | 1800 | 6 | 60 | 1 |
| BS-NP/NPS-581800-8 | 58 | 1800 | 8 | 80 | 1-2 |
| BS-NP/NPS-581800-10 | 58 | 1800 | 10 | 100 | 1-2 |
| BS-NP/NPS-581800-12 | 58 | 1800 | 12 | 120 | 2-3 |
| BS-NP/NPS-581800-15 | 58 | 1800 | 15 | 150 | 3 |
| BS-NP/NPS-581800-18 | 58 | 1800 | 18 | 180 | 3-4 |
| BS-NP/NPS-581800-20 | 58 | 1800 | 20 | 200 | 4 |
| BS-NP/NPS-581800-24 | 58 | 1800 | 24 | 240 | 4-5 |
| BS-NP/NPS-581800-30 | 58 | 1800 | 30 | 300 | 6 |
| BS-NP/NPS-581800-36 | 58 | 1800 | 36 | 360 | 7 |
| BS-NP/NPS-581800-50 | 58 | 1800 | 50 | 500 | 9-10 |
(3) Optional Accessories and their Function:
Assistant tank: to add water automatically;
Electric heater: to heat water when rainy and cloudy days;
Magnesium anode: to soften water in hard water area;
TK-8A/TK-7/TK-5 digital controller: to read and control water temperature and water level
(4) Our Advantage:
1. Solar water heater with assistant tank modelnew design side assistant tank for hard water area;
2. Non-welding technology
(5) Application:
The main use is for family use, such as bathing, cloth washing and so on.
Solar water heater with assistant tank model is widely used in apartment, hotel and school.
Also it can be used for swimming pool, farm.
(6) FAQ
1- What is your Delivery Time?
LCL order/Sample order: within 7 days.
Full container order: 7-14days.
2- What is your Guarantee Time?
5 years.
Provide you with 1%-2% extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES.
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 set.
6- What is your Packing?
LCL order/Sample order in wood cartoon.
Full container order in high quality standard export carton.
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
10000 sets.
9- What is your Shipping Term?
By Sea/Air/Rail.
